CYT1010BS 單段LED線性恒流控制芯片120mA
CYT1010BS single segment LED linear constant current control chip

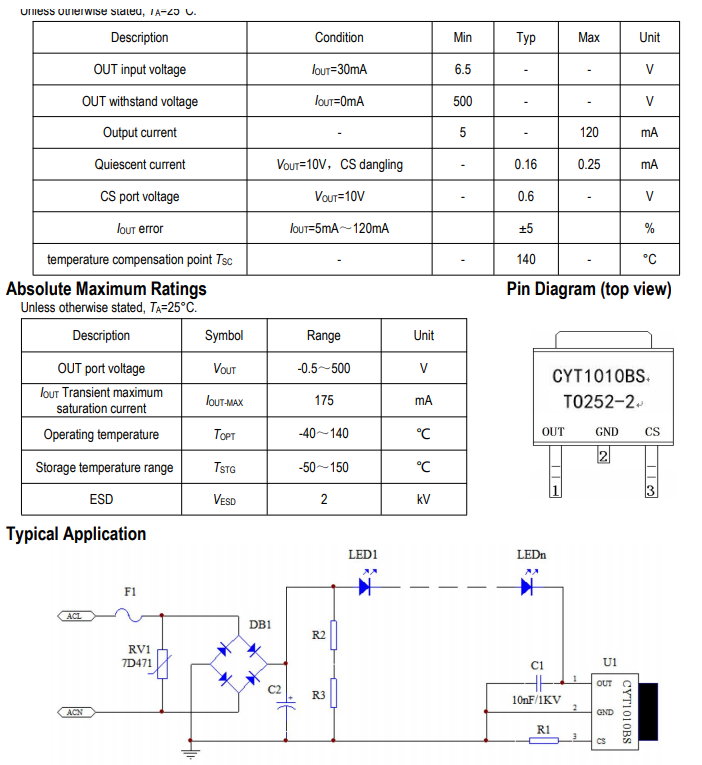

CYT1010BS is a Single Channel high voltage linear constant current LED driver, which integrates 500V high voltage MOS.
The output current can be set through an external resistor between 5mA and 120mA.
CYT1010BS built-in linear type thermal protection function to effectively prevent damage to the system caused by high temperature.
CYT1010BS system has simple peripherals, flexible application, high reliability, small volume, low system BOM cost, adjustable packaging technology can be applied to all kinds of LED lamps.
The output current is adjustable, up to 120mA, and the constant current accuracy can reach 3%.
With over-temperature protection function
voltage 500V
No EMI problem
Chip and LED share aluminum substrate with simple circuit and high cost performance.
Package: TO-252
